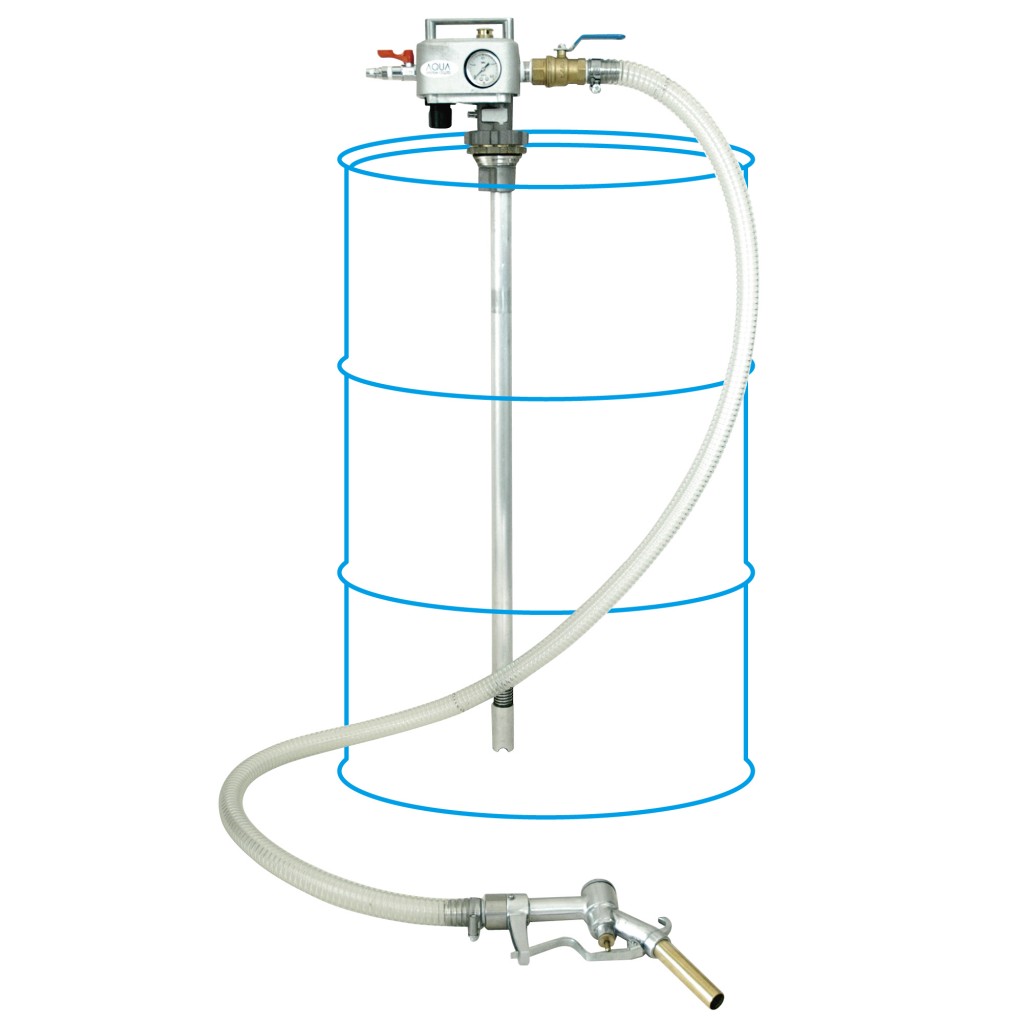

The Pump For Drum Can.
Worked by
Compressed Air
Acceptable viscosity
Up to 3000 cP
Compressor with
1HP or higher
Delivery Mechanism
- Compressed air of 0.1~1 MPa is let in.
- Regulator is set to decompress air to 0.05 MPa.
- Decompressed air enters into the drum can.
- Air pushes the surface of the liquids inside of the can.
- The pushed liquid enters into the suction pipe.
- Liquid enters into the hose and goes out through the nozzle.
Specifications Table
| Types | APD-REX | APD-20(25)EX | APD-20(25)NEX | APD-20(25)GEX | APD-20(25)GNEX | APD-20(25)ASEX | APD-20(25)ASNEX | APD-20SUS EX | APD-20SUSN EX | |
| Function | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | |
| Acceptable | General oil | General oil | General oil | Kerosene, Diesel, Gasoline | Kerosene, Diesel, Gasoline | Solvents | Solvents | Solvents, Acid and Alkaline liquids | Solvents, Acid and Alkaline liquids | |
| Partsmaterials | Body | AL | AL | AL | AL | AL | AL | AL | SUS304 | SUS304 |
| Packing | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Teflon, Fluoro-Rubber | Teflon, Fluoro-Rubber | Teflon, Perflu | Teflon, Perflu | |
| Hose | PVC (D25x2m) | PVC (D25x2m) | PVC (D25x2m) | Oil resistant rubber(D25x2m) | Oil resistant rubber(D25x2m) | SUS304 (D25x2m) | SUS304 (D25x2m) | SUS304 (D20x2m) | SUS304 (D20x2m) | |
| Maxdeliveryrate (L/min) | 1cP | 65 (150) | 65 (150) | 55 (80) | 55 (115) | 50 (70) | 35 (115) | 30 (70) | 40 | 35 |
| 500cP | 30 (60) | 30 (60) | 20 (40) | 20 (45) | 15 (30) | 15 (30) | 15 (30) | 15 | 10 | |
| 1000cP | 15 (25) | 15 (25) | 9.5 (20) | 7 (20) | 7 (15) | 6 (15) | 6 (15) | 5.5 | 5 | |
| Discharge Head | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | |
| Weight (kg) | 4.4 | 4.4 | 4.3 | 5.6 | 5.3 | 5.3 | 4.9 | 7.8 | 7.6 | |
